IM-102 - DUAL PURPOSE CUTTING/FLUID TRANSPORT TANK
BUILT IN ACCORDANCE WITH ASME SPECIFICATIONS
SPRING-LOADED (1/2) HALF-OPENING LID-EASE OF CLEANING=LOWER CLEANING COST
3” BOTTOM OUTLET WITH CAM-LOCK HOSE CONNECTION
4” COLLAR TO ACCEPT FITTINGS TO ENABLE CUTTINGS TO BE PUMPED BY HOSE
25BBL: 4900# EMPTY WEIGHT; 13900# SAFE WORKING LOAD; 29000# GROSS WEIGHT
15BBL: 3600# EMPTY WEIGHT; 17500# SAFE WORKING LOAD; 24100#GROSS WEIGHT
PADEYE DESIGN FOR EASY DUMPING OF SOLIDS OR CUTTINGS (SEE PICTURE)
SAFE-SEAL POUR-IN POLYURETHANE LID SEAL
EPOXY-PHENOLIC INTERNAL COATING

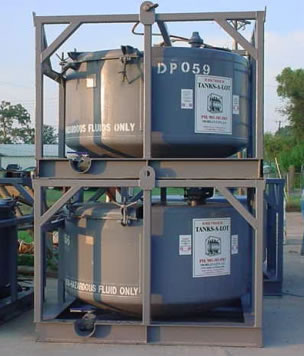

CAN BE STACKED WHEN EMPTY OR FULL
15 OR 25 BBL. CAPACITY
8” FILL OPENING
VACUUM ADAPTABLE
25BBL DIMS: 8’ X 8’ X 54” H
15BBL DIMS: 7’ X 7’ X 54” H
HYDRO TESTED TO 22 PSI
3” PRESSURE RELIEF VALVES
